P/N:XCNC25004

Boquillas para filamentos de 1,75 mm;

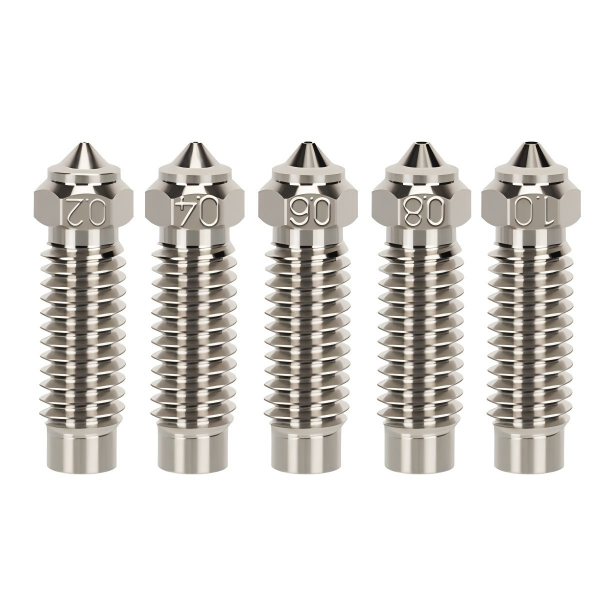

Available size:0.2/0.4/0.6/0.8/1.0/1.2mm

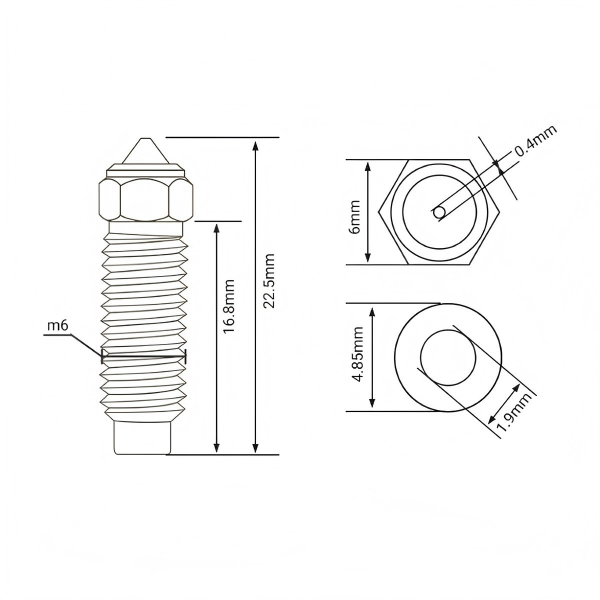

Size:22.5*6mm；

Mounting thread: M6

Inner hole surface roughness: Ra 0.4

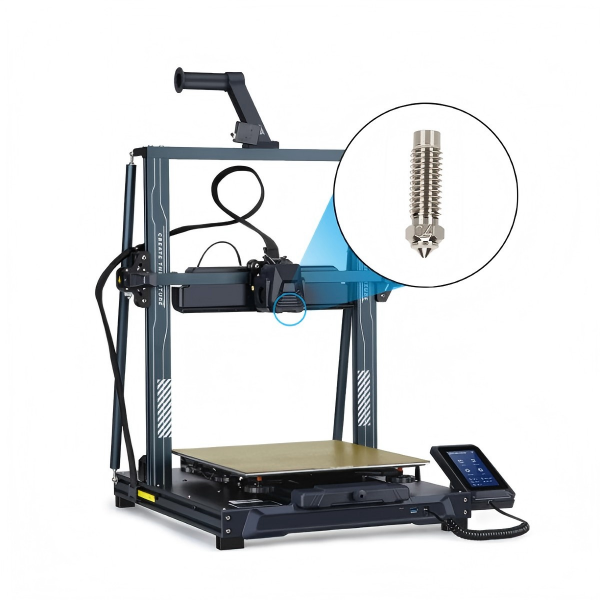

Suitable for Neptune Plus/4 Max

Product Advantages

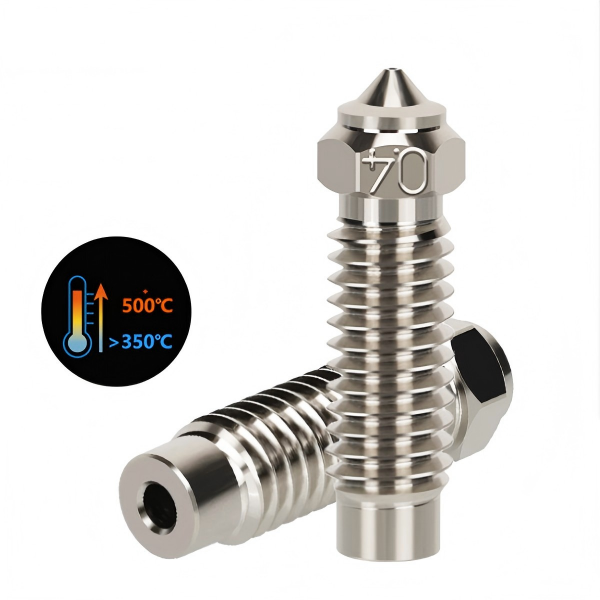

1. Excellent Heat Resistance

Crafted from chromium-zirconium copper with a nickel-plated surface, the nozzle delivers exceptional thermal conductivity and high-temperature resistance. The electroplated nickel layer effectively reduces oxidation reactions under high temperatures, ensuring superior printing results.

2. High Thermal Conductivity & Excellent Thermal Performance

Constructed from high-quality chromium-zirconium copper with a nickel-plated surface, the nozzle facilitates rapid heat transfer. This results in faster filament melting and a longer melting chamber, providing robust support for high-speed printing operations.

3. Flat End Face & Tight Sealing

The nozzle features a flat contact surface, ensuring a tight and secure fit at the joint. This effectively prevents leaks from the print head, maintains high thermal conductivity, and enables smooth material feeding that is less prone to clogging, thus achieving excellent printing results.

4. Precise Aperture

With an aperture precision tolerance of ±0.01 mm, the nozzle guarantees stable and reliable material extrusion from the print head, laying a solid foundation for high-precision printing.

5. Smooth Inner Wall & Superior Fluidity

Precision-machined by imported high-precision machine tools, the nozzle features an ultra-smooth inner wall with a surface roughness of approximately Ra 0.4. This design minimizes material flow resistance, enabling smooth and consistent filament movement during printing.
